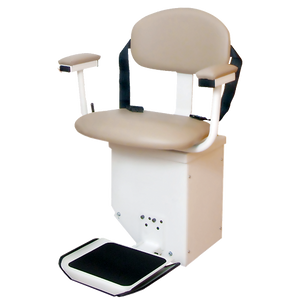

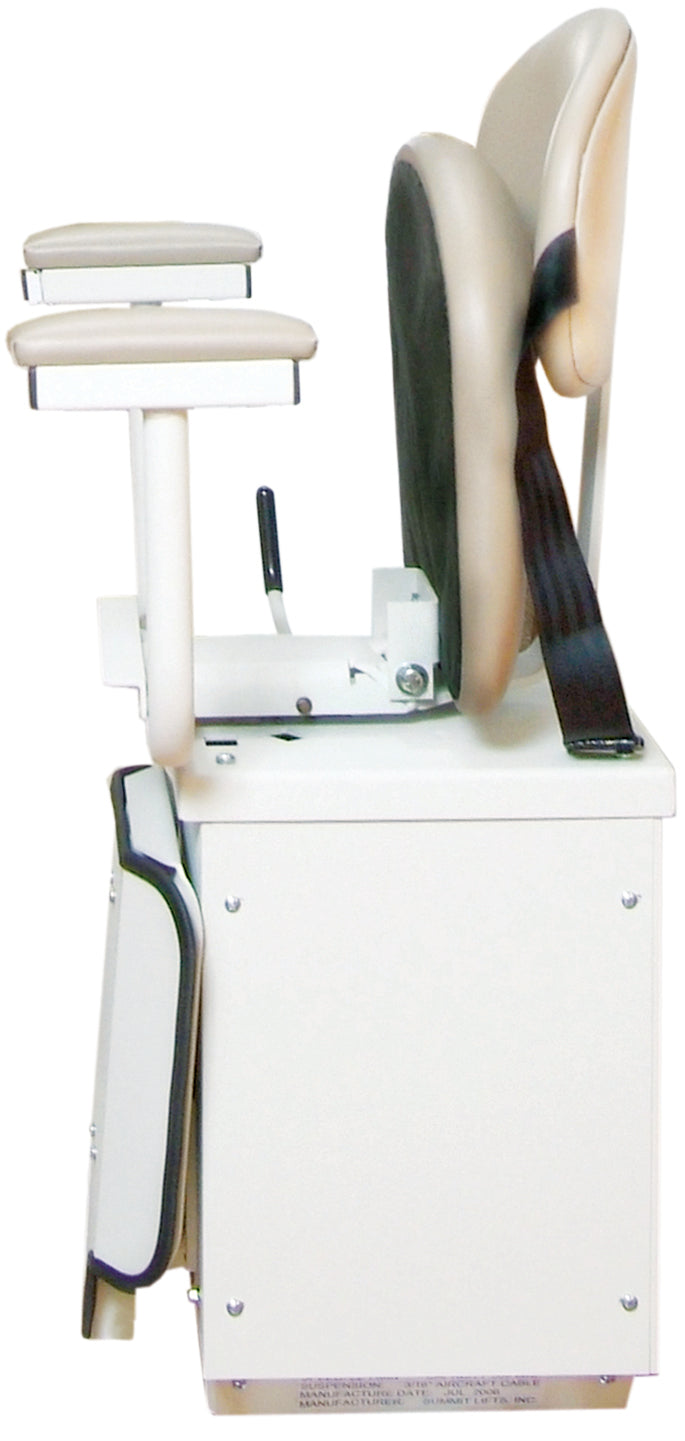

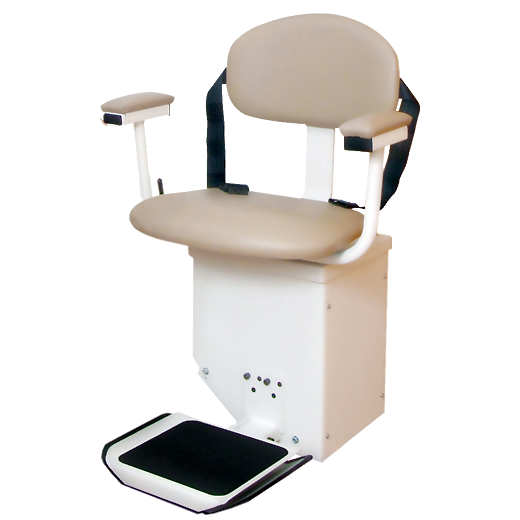

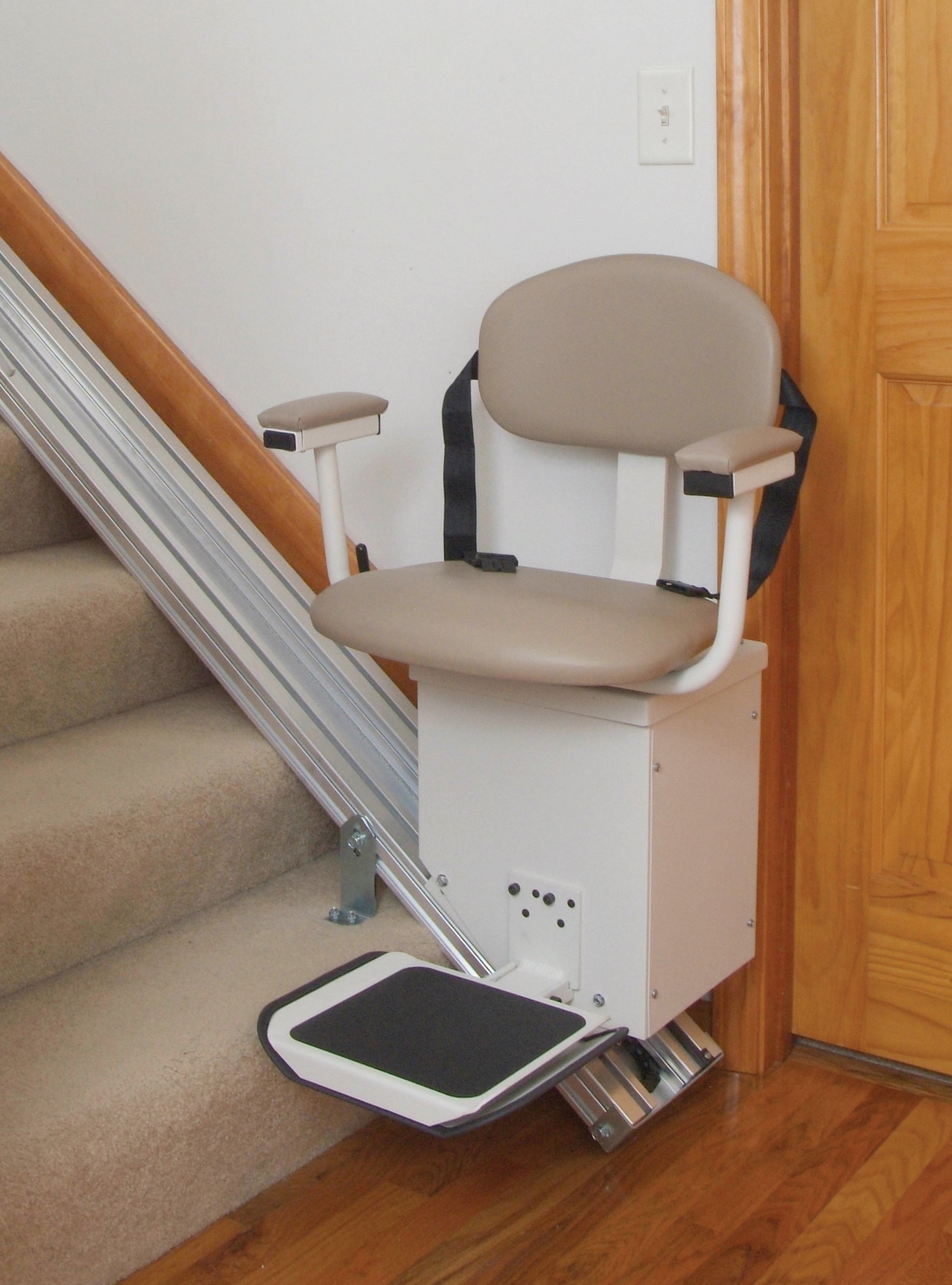

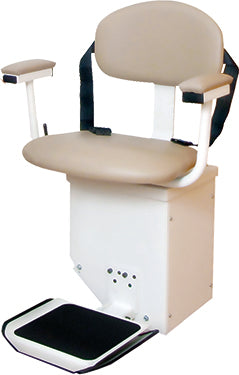

Harmar SL350AC Stair Lift

Indoor AC Straight Stair Lift

Harmar’s SL350AC Stair Lift is engineered with a carriage that is pre-installed on a short section of the durable extruded aluminum track. The backrest has three different settings, and the fold-up footrest adjusts to two different heights for the utmost in custom comfort. The spacious, wide seat features thick padding and attractive upholstery.

Features

  • Rocker controls with constant-pressure functionality stop the lift immediately if the control is released
  • Mounts to the stairs (not the wall) on either side of staircase
  • Operates on standard 115V AC household current
  • Extruded aluminum track is available in custom lengths
  • Seat and footrest fold to save space
  • Separate controls at top and bottom of stairs

Specifications

  • Weight capacity
    350 lb (159 kg)
  • Seat size
    19” W x 14” D x 14” H
  • Speed
    20 FPM
  • Folded Width
    14"
  • Track Length
    15'6" Standard; up to 25'
  • Power
    24V AC
  • Incline Limits
    30° - 45°
  • Outdoor
    No
  • Drive system
    Cable Drive
  • Safety Features
    • Footrest Obstruction Switch
    • Swivel Seat Cut-off Switch
    • Final Limit Switch
    • Seat Belt
    Slack Cable Break with Switch
    • Constant Pressure Controls
  • Warranty
    3-Year Parts
